Guangzhou Hengqiao provides the latest water training platform / water sports platform / water competition training platform / water training terminal in 2019, consultation hotline: 136 6010 8188

Edit date: 2019.4.1

Editor: Guangzhou Hengqiao Offshore Engineering Co., Ltd.

Guangzhou Hengqiao specializes in the construction of large-scale water training platform, water sports / competition training platform, water stage, water dock, water floating bridge, water swimming pool, water housing, water fishing platform, from design to construction to provide a one-stop service. Welcome to call: 020 / 82396205.

1. Data parameters of vertical bearing capacity and horizontal bearing capacity of water training platform. (2 cases, safe use and limit condition)

Description of vertical bearing capacity of water training platform:

[monolayer]

The height of single buoy is 40 °, and the area of each 4 buoy is 1 square meter;

Load per square metre:

a. The depth of no-load draft is about 2.5? 3?

b. (B) draft depth of about 10 / 15 (safe use) when carrying 100?

C. The water depth of the bearing 300 is about 35-40% (limit condition).

Example calculation reference:

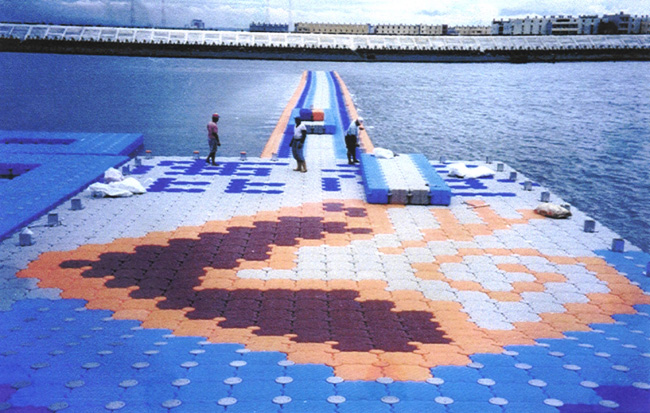

The water training platform is 40 m long and 40 m wide, with a total of 1600.

The average weight per person is 75.

a. Status of safe service carrying capacity: 1600 x 100 = 160000 (160 tons)

2133 bearers

B. Ultimate bearing capacity: 1600 x 300 = 480000 (480t)

6400 bearers

2. The magnitude of the water training platform bearing wave force. (2 cases, safe use and extreme conditions)

The level of water and sea wave 2-3 is the safe use condition;

The level of the water surface wave in the 6-8 level is the limit use condition (not recommended).

3. How to consider the anchoring method.

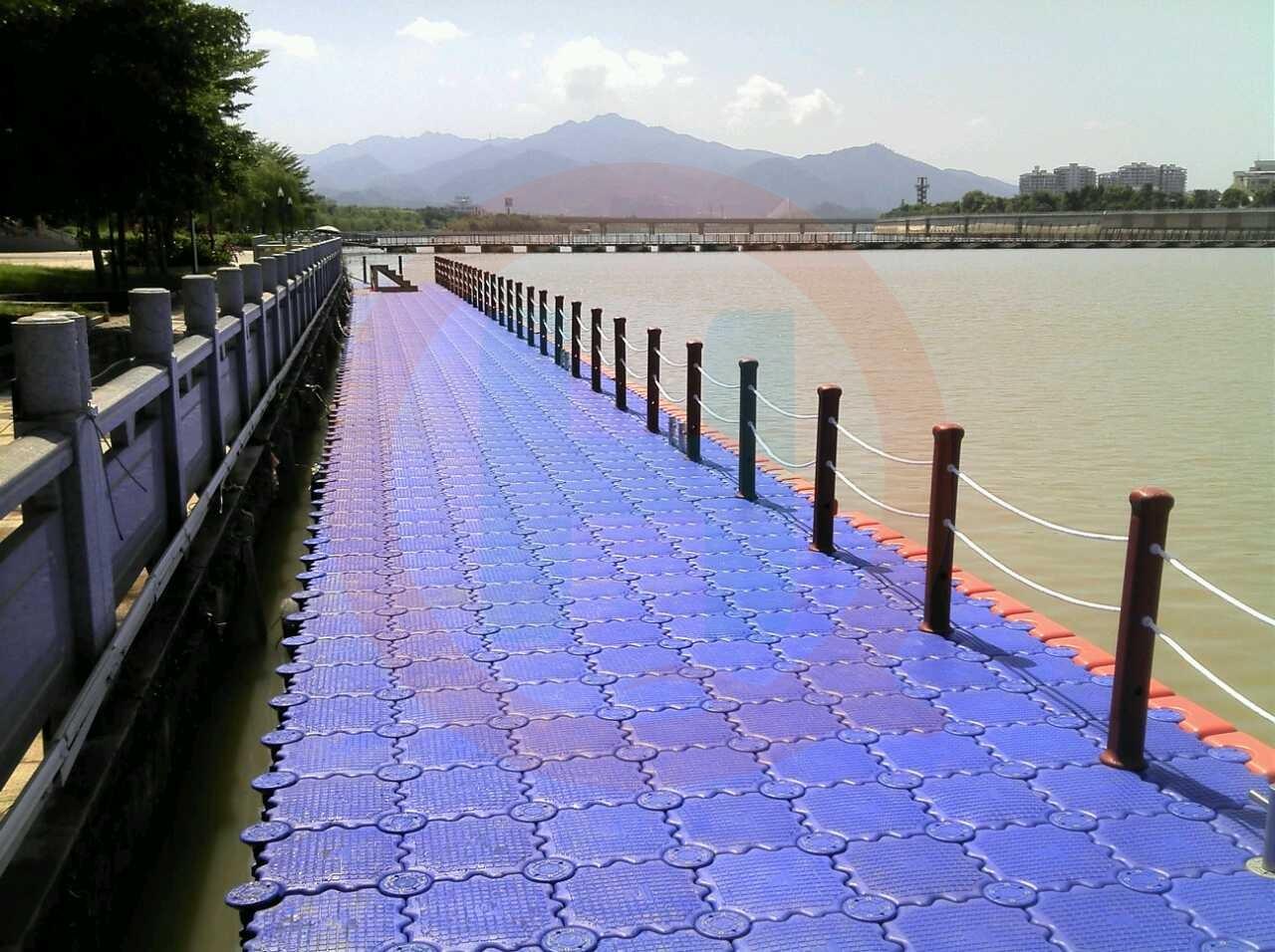

The water training platform and the fixed shore terminal are connected by a stainless steel landing port bridge, and the movable port bridge can

Automatic lifting and lowering adjustment of position ups and downs, the anchoring mode of which is fixed at the appropriate point of the pile column to prevent the floating bridge

Moving to the left and right, then connecting the pile with clasp can automatically rise or fall with the water level, but also in four directions.

The underwater anchor controls the degree of freedom of the platform, and the length of the anchor rope is 3-5 times the depth of the water.

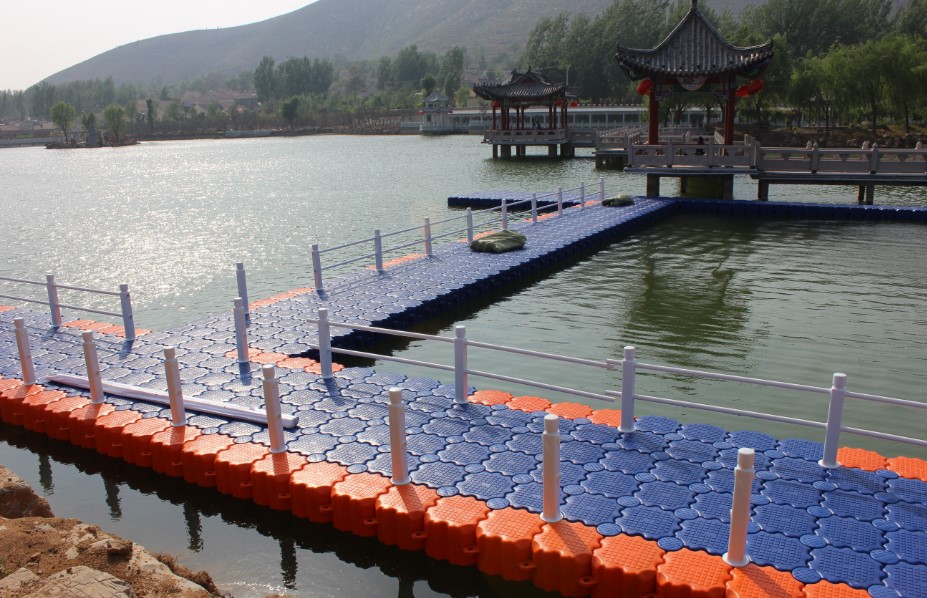

4. How to consider the safety facilities of the water leisure platform.

The peripheral side of the platform is 50% (one pontoon width) to install and fix the steel hard-type balustrade to prevent the pedestrian from falling into the water.
