Thin-walled steel concrete yacht marina

Editorial date :2021.3.15
Editorial Unit: Guangzhou Hengqiao Marine Engineering Co., Ltd

Guangzhou Hengqiao Marine Engineering Co., Ltd. is a professional engaged in yacht marina, aluminum alloy structure floating wharf, concrete structure floating wharf, steel structure floating wharf, floating barge wharf, water house, water swimming pool, active approach bridge and other water engineering related supporting services, can provide project consulting, drilling, design, manufacturing and engineering installation after-sale maintenance and other professional services. Company team members have received foreign wharf professional technical training, and domestic and foreign yacht marina industry for many years. Our team has professional experience in water installation and can adapt to all kinds of construction requirements. Hengqiao Haigong high-quality engineering and exquisite technology at home and abroad to win the majority of customers praise.

Thin-walled steel concrete yacht wharf: mainly composed of steel concrete floating box Prefabricated clay, filled with polystyrene foam, with high buoyancy, good stability, wave resistance Good performance, long service life (more than 50 years), maintenance-free, comprehensive use cost and other characteristics.

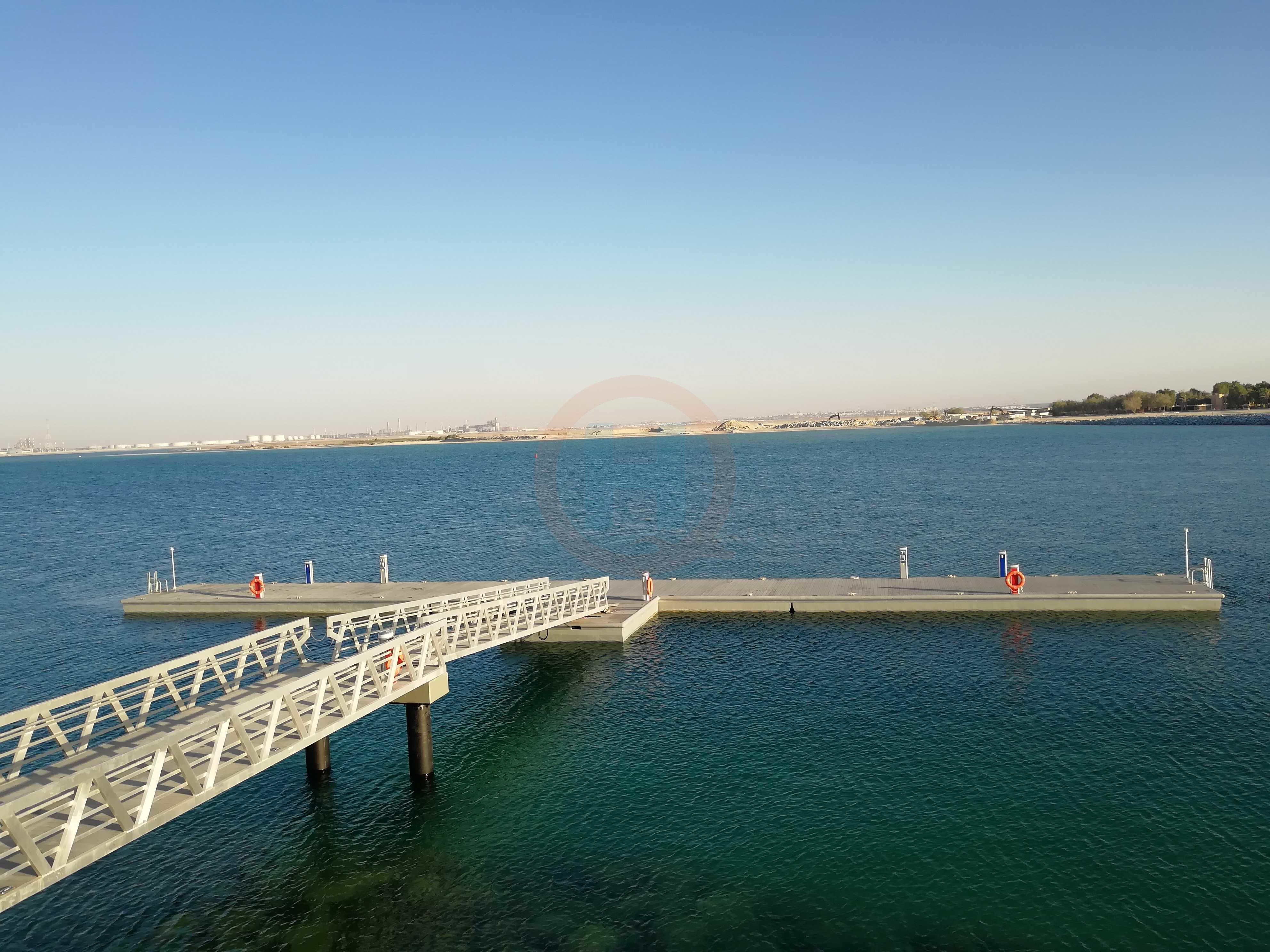

Thin wall steel concrete yacht wharf is a floating wharf based on concrete floating body (floating box), which focuses on thin wall concrete floating body (floating box).
I. Technical parameters
Weight :15 Ton
Dimensions :12 m / standard unit (customizable)
Design load :250~300 kg/㎡
No-load freeboard height :450~550 mm
full port height :≧ mm 200
Design life :>50 years (regular inspection and maintenance)
Main components: inner foam concrete floating body, steel cable, wooden slabs

Other accessories: approach bridge, cable pile, pile holder, water supply box, solar lighting indicator, plastic fender, fire fighting device, garbage can and so on, can be used as berthing equipment of super yacht port, It is also suitable for harsh waters.

II. Summary of performance parameters

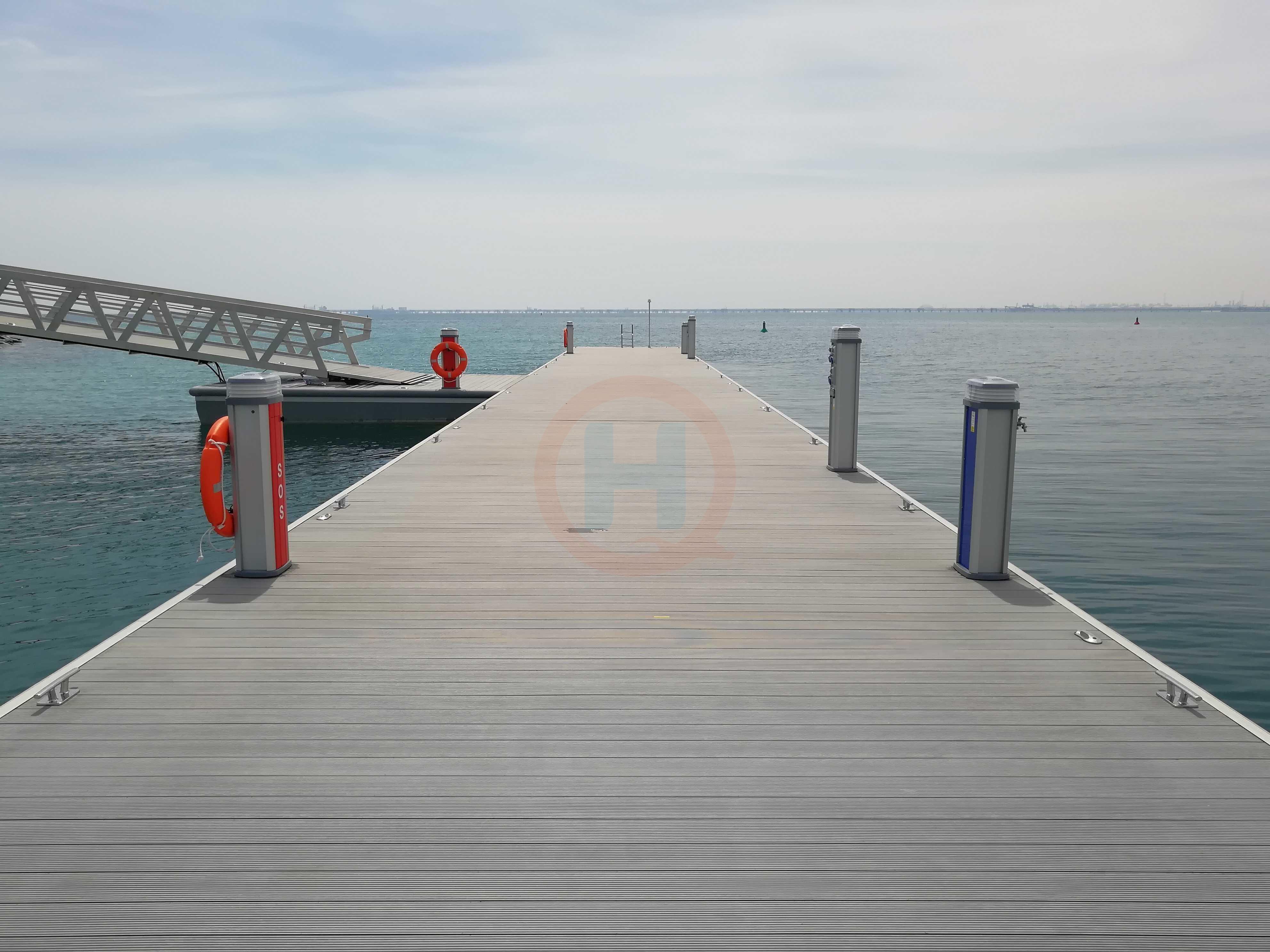

1. concrete main (branch) floating bridge: concrete floating box filled with polystyrene foam, covered with reinforced concrete, mold forming surface smooth, water absorption less than 5% per cubic meter.
Design load :150~250 kg/㎡
No-load freeboard height :450~550 mm
Full load freeboard height :≧200 mm can be customized according to customer needs.

2. characteristics: with large buoyancy, good stability, high wind and wave resistance.

3. design life :50 years (should be maintained regularly)

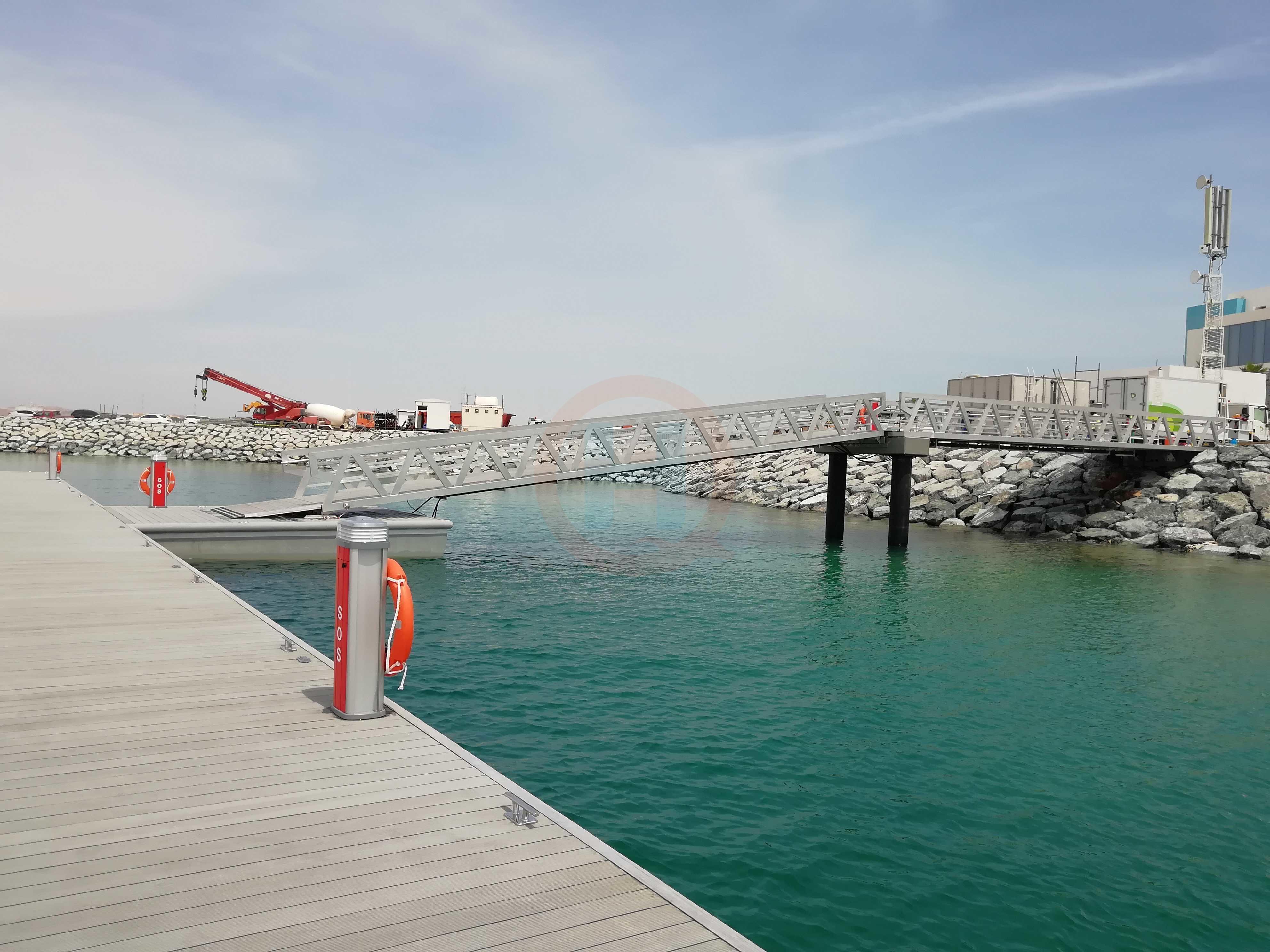

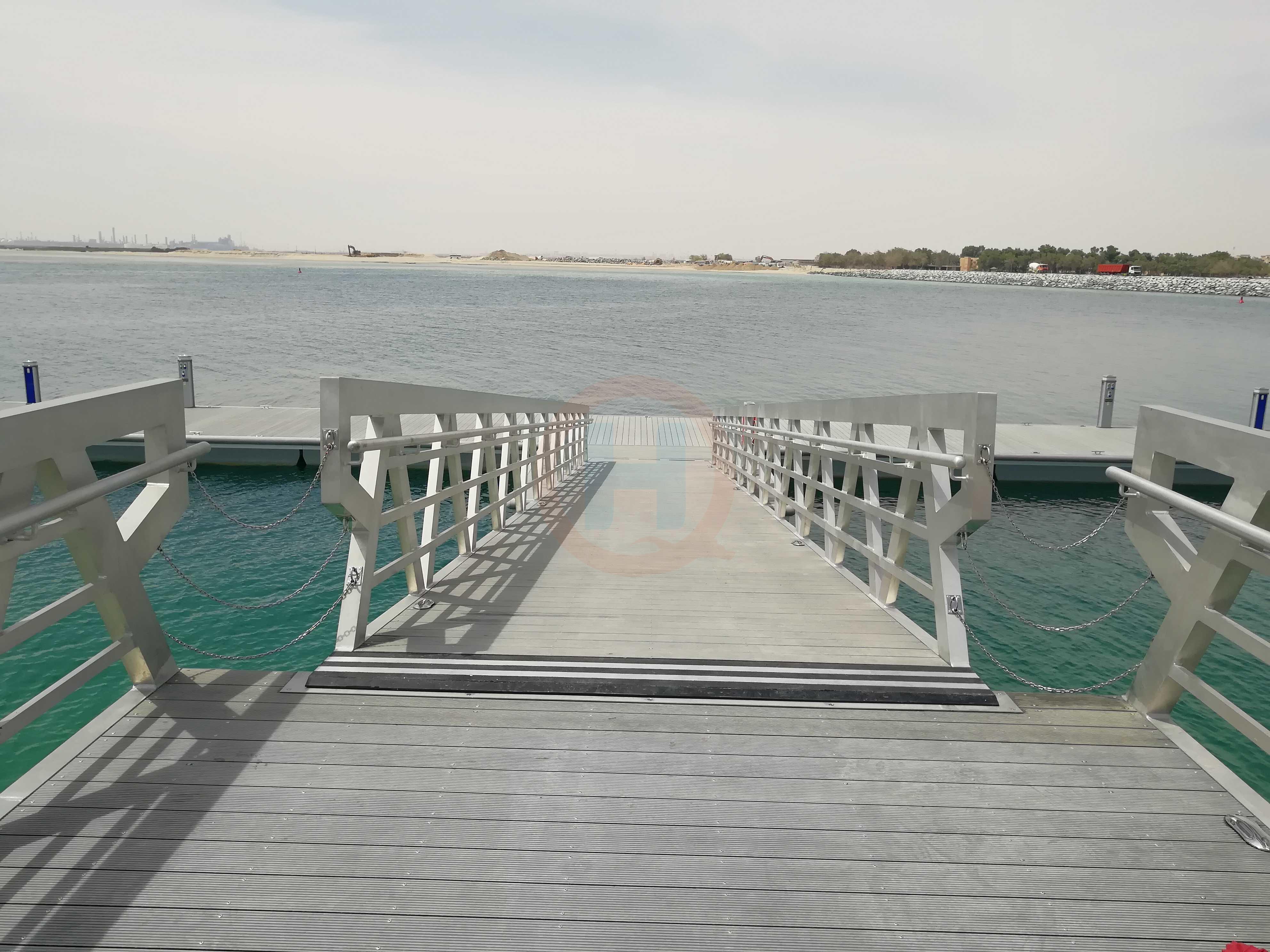

4. active approach bridge: truss structure, galvanized steel structure is used for material, aluminum alloy structure is recommended for large span approach bridge, weight is reduced, and design strength meets the requirements of use.

Design load :100~200 kg/㎡, can be customized according to customer needs.
